Tissue-expression profiles unveils the gene interaction of hepatopancreas, eyestalk, and ovary in precocious female Chinese mitten crab, Eriocheir sinensis

1Introduction¶

Sexual precocity refers to the reproductive system (gonad) that abnormally develop into sexual mature stage in advance during puberty, which is a natural phenomenon in most animal species, even in human Parent et al., 2003Chang et al., 2017Takada et al., 2018. Growth and development retardation, increased illness rate, and other associated physiological defects are believed to be the consequences of sexual precocity Parent et al., 2003Guiry et al., 2010. Sexual precocity is a complex physiological process that induced by extrinsic environment factors and intrinsic genetic factors Abreu et al., 2015Chang et al., 2017. The early development of gonads is considered to be the molecular response to environment factors, such as hormone, nutrition, temperature, disease and so on Abreu et al., 2015. The scientific communities are struggled with the genetic mechanism of sexual precocity; however, the underlying mechanism is still elusive.

In vertebrate, the gonad development is believed to be regulated by hypothalamus-pituitary-gonad axis (HPG), however, in invertebrate, the regulation of reproductive system is vague Nagaraju, 2011Bao et al., 2015. Chinese mitten crab Eriocheir sinensis, an economical crustacean widely cultured in China is also suffered from severe precocious problems Wang et al., n.d.. Huge economic losses in the E. sinensis aquaculture industry is caused by substantial proportion of precocious E. sinensis individuals every year Chang et al., 2017Xu et al., 2017. Environment factors such as temperature, salinity, light, and stocking density are believed to induce sexual precocity in E. sinensis, however, the intrinsic molecular feedback to the stimulation of environment factors is largely unknown in E. sinensis Li et al., 2007Li et al., 2010Wu et al., 2011.

A similar X-organ-sinus gland complex neuroendocrine system existed in eyestalk is believed to play analogous roles as HPG axis in crustaceans (Keller, 1992; BÖ Böcking et al., 2002Nagaraju, 2011). Gonad inhibiting hormone (GIH), molt-inhibiting hormone (MIH), crustacean hyperglycaemic hormone (CHH), neuropeptide F (NPF) genes/neuropeptides expressed and synthesized in eyestalk are believed to play essential roles in regulating gonad development of E. sinensis Ci, 2015. Meanwhile, hepatopancreas is an essential organ for energy metabolism, providing essential energy source for gonad development of E. sinensis Huang et al., 2015. Studies have also indicated exogenous vitellogenin is synthesized in hepatopancreas and transferred to ovary during vitellogenesis process in E.sinensis Wang et al., 2014. However, how the environment factors stimulate and activate the gonad early development and what is the specific biological function of eyestalk and hepatopancreas in regulating gonad development was largely unknown in precocious E. sinensis.

E. sinensis is a catadromous species and the life cycle is generally two years. The mating and spawning occurs during winter in brackish water and the fertilized eggs develop into larvae in spring, then the larva will migrate to freshwater rivers/lakes and spend nearly two years with nearly 20-times molting before they get sexual mature Wang et al., n.d.Wang et al., 2018. Generally, the gonad development of E. sinensis initiates at the second year. As for precocious E. sinensis, the gonad starts to develop and get completely sexual mature in the first year Wang et al., n.d.. Molting and growth is terminated in sexual mature precocious E. sinensis and these individuals are usually discarded due to their unworthiness in the aquaculture Xu et al., 2017. The most direct and accurate way to identify precocious E. sinensis is through histology observation which is quite inconvenient during aquaculture for farmers. During the aquaculture process, precocious female E. sinensis individuals are always identified based on the shape of abdominal sternite by experienced farmers (Figure 1A) Li et al., 1998Ci, 2015. The female E. sinensis gets sexual mature when the abdominal sternite completely covers the whole abdomen (Figure 1A). Previous studies have indicated the ratio of abdominal sternite length is a candidate phenotype character to discriminate the precocious level in female E. sinensis Li et al., 1998 (Figure 1A). However, researches link the abdominal sternite length to ovary development stages are limited.

In this study, potential precocious female E. sinensis were firstly collected based on phenotype characters (ratio of abdominal sternite length) and then confirmed by histology observation. Comparative transcriptome was conducted on eyestalk, hepatopancreas, and ovary tissues of precocious female E. sinensis from different ovary development stages to 1) provide a convenient way to identify precocious E.sinensis in aquaculture, 2) reveal the tissue-expression profiles in precocious female E. sinensis in chronological order, 3) identify potential candidate genes/pathways involved in early ovary development, and 4) provide novel insights into the genetic network of eyestalk and hepatopancreas in regulating ovary development in E. sinensis.

2Materials and methods¶

2.1Animal sampling and ethics¶

This study was approved by the Institutional Animal Care and Use Committee (IACUS) of Shanghai Ocean University (Shanghai, China). Sampling procedures complied with the guideline of IACUS on the care and use of animals for scientific purposes. All the E. sinensis individuals in this study were collected from the Aquatic Animal Germplasm Station of Shanghai Ocean University (Shanghai, China). In this study, potential precocious female E. sinensis individuals were firstly collected according to the ratio of abdominal sternite length (B5-B5’/C5-C5’) and then confirmed by histology observation (Figure 1).

2.2Measurement of phenotype characters and histology observation¶

For the collected E. sinensis individuals, phenotype characters such as body weight, ovary weight and hepatopancreas weight were measured, and abdominal sternite length were also recorded according to previous research Li et al., 1998. Hepatopancreas index (HSI), gonad index (GI), and ratio of abdominal sternite length were calculated according to the following formula.

Ovary tissues from potential precocious E. sinensis individuals were fixed using Bouin’s fixative (Sangon Biotech, China) at room temperature for 24h. Then the ovary tissue-slices were prepared and stained according to hematoxylin-eosin (HE) staining method. The tissue-slices were observed under a DM500 microscope system (LEIKA, Germany) and Image Analysis Software Toup View.

2.3RNA isolation and transcriptome sequencing¶

According to the histology observation results, precocious E. sinensis individuals with ovary developmental stages in major growth stage I, major growth stage II, and sexual mature stage were collected with three biological replicates in each group. Meanwhile, three normal developed two-year old female E. sinensis individuals (sexual mature stage) were also sampled as control group. All the collected E. sinensis were anaesthetized on ice and eyestalk, hepatopancreas, and ovary tissues were quickly collected and immediately stored in liquid nitrogen before RNA extraction. Total RNA was extracted from each collected E. sinensis individual with RNAiso Reagent (Takara, China) according to the manufacturer’s instructions. The RNA integrity and quantity were examined using agarose gel electrophoresis and an Agilent 2100 Bioanalyzer (Agilent, Shanghai, China), respectively. A total of 5 μg RNA with an RNA integrity number (RIN) exceeding 8.0 was used for RNA-seq library construction using the Truseq^™ RNA sample Prep Kit for Illumina (Illumina, USA). These indexed libraries were sequenced on an Illumina Hiseq^™4000, with 150 bp pair-end reads produced.

2.4Differential expression and GO enrichment analysis¶

After sequencing, raw sequencing reads were firstly trimmed using Trimmomatic software Bolger et al., 2014. And then, clean reads were mapped to our previously assembled reference transcriptome assembly (NCBI TSA accession number: GGQO00000000) using Bowtie 1.0.0 Langmead et al., 2009. Gene abundance, the TPM (transcripts per million transcripts) value was measured using the RSEM 1.3.0 software Li & Dewey, 2011. The resulting data matrix with expression value (TPM) for all the samples was generated and used as input data for differential expression analysis. Then the differentially expressed genes (DEGs) was measured by DESeq2 software using P < 0.001 for the false discovery rate (FDR) and a fold change > 2² Anders & Huber, 2010. After normalizing the DEG TPM values using log2 and mean centered, cluster analysis was performed using the hierarchical cluster method based on the euclidean distance using heatmap module in R. GO enrichment analysis of the DEGs was conducted using TopGO software with an adjusted P value < 0.001 (A AND J 2010). Pearson correlation was calculated and plotted by corrplot package in R.

2.5qRT-PCR validation¶

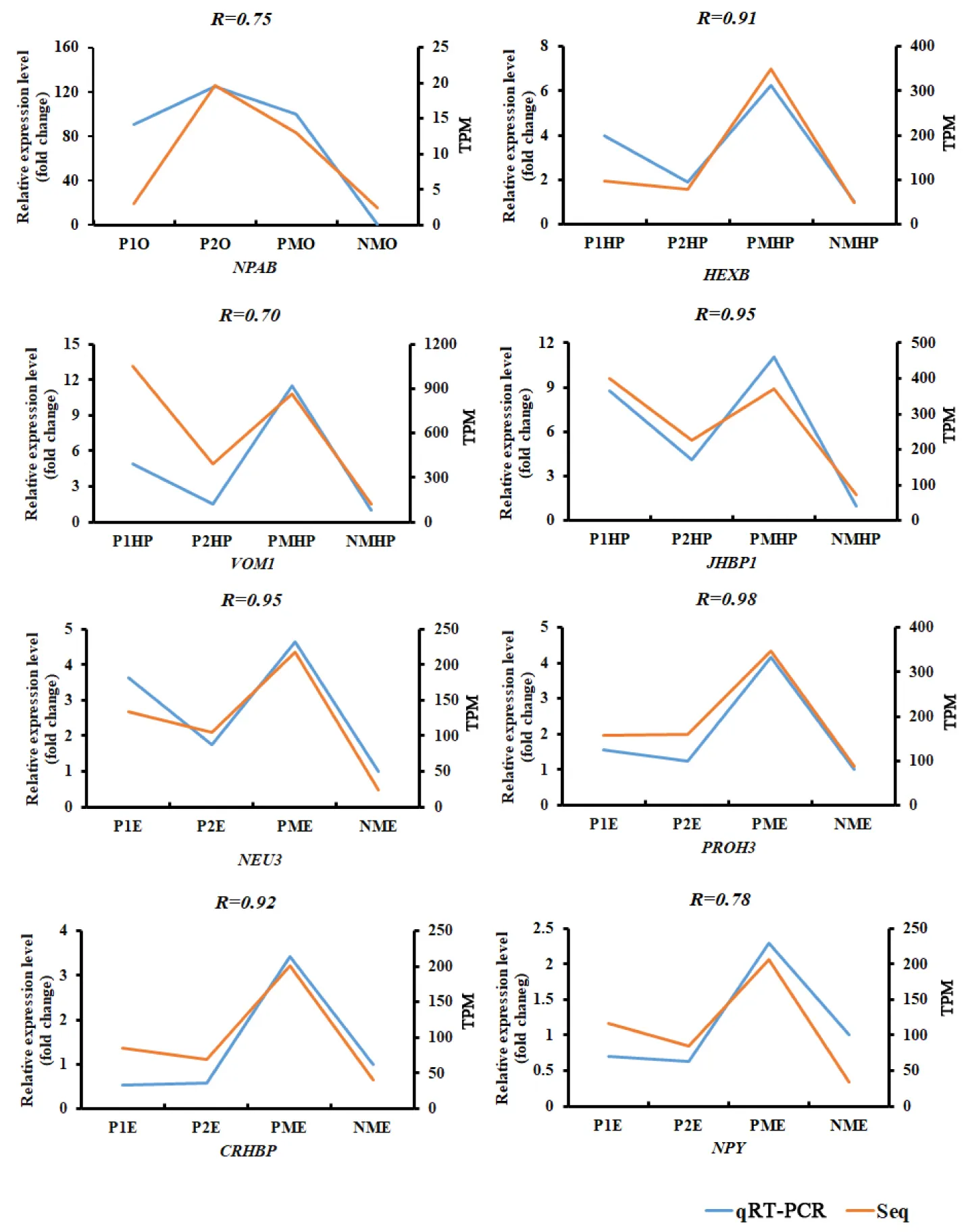

Quantitative real-time PCR (qRT-PCR) was carried out to validate the DEGs identified in this study. Eight DEGs in ovary, hepatopancreas, and eyestalk were chosen for qRT-PCR assays. PCR primers were designed according to our previous reference transcriptome assembly (Table S1). In this study, three reference genes ubiquitin conjugating enzyme (Ube), beta-actin (β-actin), and ribosomal S27 fusion protein (S27) were selected to normalize the gene expression level. qRT-PCR was conducted using SYBR Green Premix Ex Taq (Takara, China) in a QIAxcel real-time PCR system (Qiagen, German). A standard curve was firstly generated to assess amplification accuracy, and primers with an amplification efficiency between 95% and 105%, and Pearson correlation (R²) >0.98 were chosen for following qRT-PCR experiments. Three biological and three technical replicates were chosen for each selected DEG. The relative expression was estimated using the 2^−ΔΔCt method with normal developed sex mature E. sinensis individuals as a calibration control Livak & Schmittgen, 2001. Relative expression results were presented as the fold-change relative to normal developed sex mature E. sinensis individuals. Statistical significance (P < 0.05) was determined using one-way ANOVA tests under SPSS 25.0.

2.6Data archive¶

Sequencing reads are available at NCBI SRA database (SRR7777398, SRR7777399, SRR7777400, SRR7777401, SRR7777402, SRR7777403, SRR7777404, SRR7777405, SRR7777406, SRR7777407, SRR7777408, SRR7777409)

3Results¶

3.1Phenotype characters measurement and ovary histology observation¶

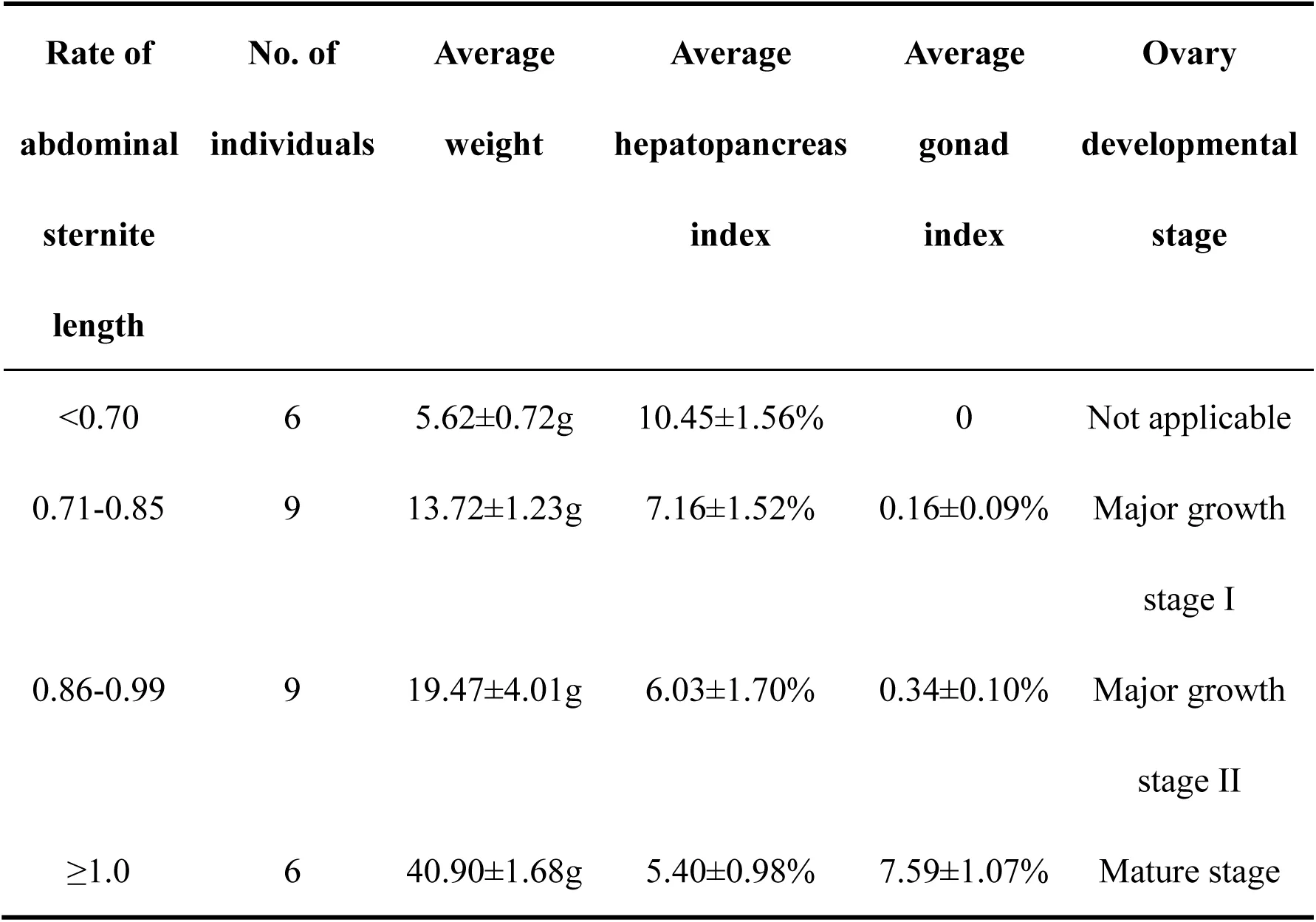

According to the ratio of abdominal sternite length and the histological observation from collected potential precocious E. sinensis individuals, four groups of E. sinensis with different ovary developmental stage were clearly identified. Group I, the ratio was less than 0.7 and no clearly ovary tissue was discovered; Group II, the ratio was ranged from 0.71-0.85, the ovary developmental stage was in major growth stage I; Group III, the ratio was 0.86-1.0 and the ovary developmental stage was in major growth stage II; Group IV, the ratio was greater than 1.0 and the ovary stage was completely mature with clearly oocytes (Table 1, Figure 1B). The hepatopancreas index decreased from 10.45% to 5.40% and the gonad index increased from 0 to 7.59% accompanied with the abdominal sternite length ratio increased from 0.70 to 1.00. (Table 1, Figure 1).

3.2Tissue gene expression profiles in precocious E. sinensis¶

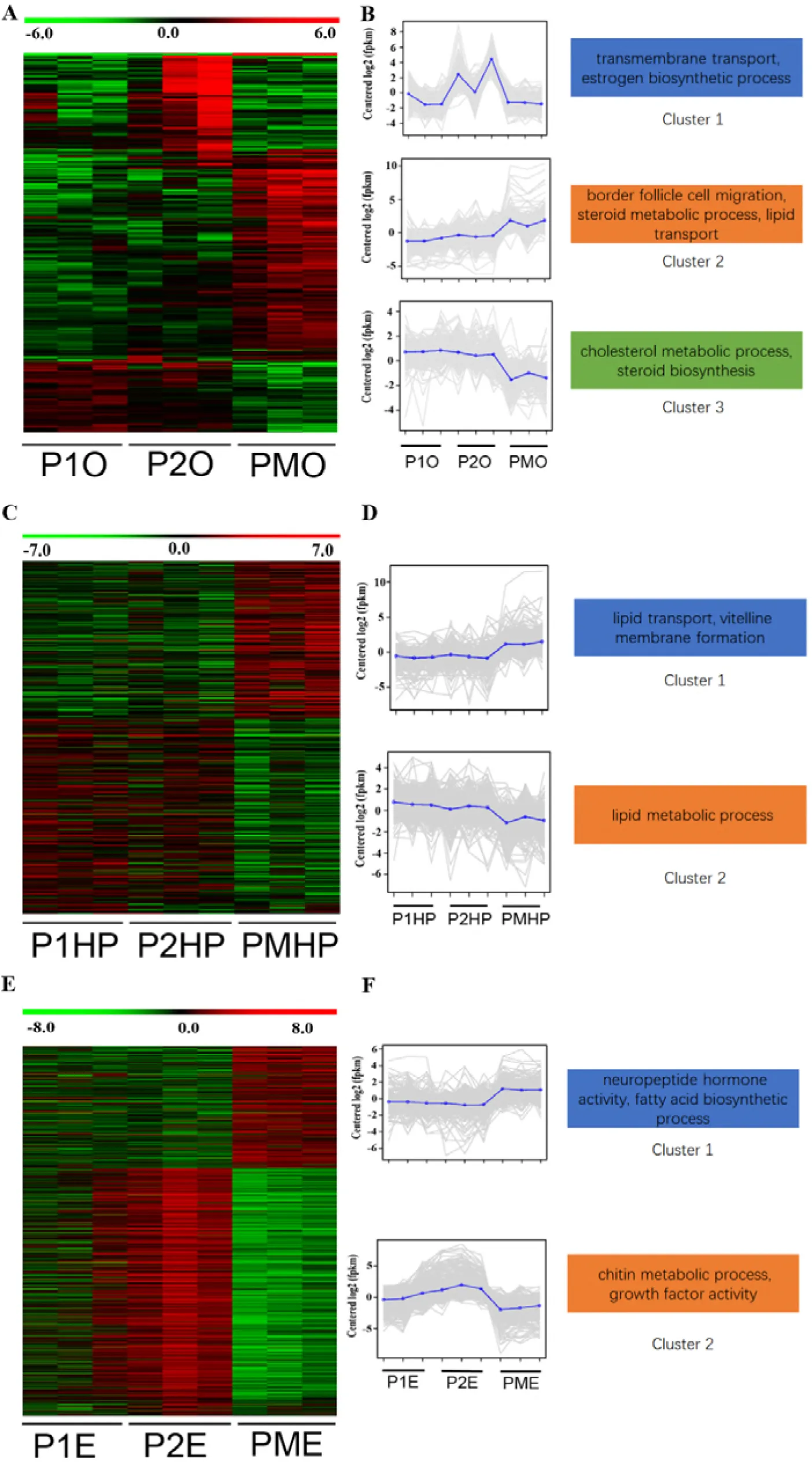

Regarding ovary tissue, a total of 957 DEGs were identified among different groups of precocious E. sinensis. Three clusters were defined based on the hierarchical clustering results revealing different expression patterns in the ovary of precocious E. sinensis. GO enrichment analysis indicated that genes in cluster 1 including sodium-dependent nutrient amino acid transporter 1 (NAAT1), MFS-type transporter (SLC18B1), solute carrier family 13 member 3 (SLC13A3), solute carrier family 10 member 6 (SLC10A6), monocarboxylate transporter 12 (SLC16A12), glucose-6-phosphate exchanger (SLC37A4), low-density lipoprotein receptor 1 (LDLR-A), nose resistant to fluoxetine protein 6 (NRF-6) genes associated with transmembrane transport for amino acid, creatine, glucose, lipid transport, and estradiol 17-beta-dehydrogenase 8 (HSD17B8) gene associated with estrogen biosynthetic process were highly expressed in major growth stage II group (Figure 2A, 2B Cluster1). Genes associated with oogenesis, border follicle cell migration, steroid metabolic process and lipid transport were highly expressed in completely sex mature precocious group enriched in cluster 2, including myosin heavy chain, non-muscle (ZIP), dynamin (SHI), Ets DNA-binding protein pokkuri (AOP), Protein catecholamines up (CATSUP), very low-density lipoprotein receptor (VLDLR), sulfotransferase 1A1 (SULTLA1), sortilin-related receptor (SORL1), low-density lipoprotein receptor-related protein (LRP) (Figure 2A, 2B Cluster 2). Genes enriched in cluster 3 such as Delta (24)-sterol reductase (DHCR24), dehydrogenase/reductase SDR family member 11 (DHRS111), NPC intracellular cholesterol transporter 1 (NPC1) were involved in cholesterol metabolic process, steroid biosynthesis were highly expressed in major growth stage I (Figure 2A, 2B, Cluster 3).

Compared sex mature precocious ovary with normal two-year-old sex mature ovary, only 11 DEGs were identified, among them up-regulated genes like Neuroparsin-A (NPAB), Lipase 3 (LIP3) in precocious ovary were associated with neuropeptide hormone activity and lipid catabolic process (Table S2, Figure 3).

Considering hepatopancreas tissue, a total of 806 DEGs were identified among different groups of precocious hepatopancreas. Two clusters were defined based on the hierarchical clustering results. GO enrichment indicated that genes such as ATP-binding cassette sub-family A member 3 (ABCA3), sodium/bile acid cotransporter (SLC10A1), ileal sodium/bile acid cotransporter (SLC10A2), vitelline membrane outer layer protein 1 (VMO1), vitellogenin (VG), beta-hexosaminidase subunit beta (HEXB), hemolymph juvenile hormone binding protein (JHBP) in cluster 1 associated with lipid transport, vitelline membrane formation, oogenesis were highly expressed in sex mature precocious group (Figure 2C, 2D Cluster 1, Figure 3). Genes such as glycerol-3-phosphate acyltransferase 3 (GPAT3), bile salt-activated lipase (CEL), lysosomal acid lipase (LIPA), pancreatic triacylglycerol lipase (PNLIP) in cluster 2 were associated with lipid metabolic process (Figure 2C, 2D Cluster 2).

Compare normal two-year-old sexual mature hepatopancreas with sexual mature precocious hepatopancreas, 372 DEGs were identified, Genes up-regulated in completely sexual mature precocious hepatopancreas like VMO1, VG were enriched in vitellogenin synthesis, vitelline membrane formation, lipid transport biological process (Table S2, Figure 3).

For eyestalk tissue, a total of 1,081 DEGs were identified among different groups of precocious eyestalks. Two clusters were defined based on the hierarchical clustering results revealing different expression patterns. GO enrichment analysis indicated genes such as neuropeptide F (NPF), MIH, CHH, vasotocin-neurophysin VT 1 (VT1), glycoprotein hormone beta-5 (GPHB5), Cytochrome P450 18a1 (CYP18A1), corticotropin-releasing factor-binding protein (CRHBP) in cluster 1 highly expressed in sexual mature precocious eyestalk were associated with neuropeptide hormone activity, fatty acid biosynthetic process (Figure 2E, 2F Cluster1, Figure 3). Genes such as cuticle protein CP498, cuticle protein AM1159, insulin-like growth factor-binding protein-related protein 1 (IGFBP), platelet-derived growth factor receptor alpha (PDGFRA), protein 60A (GBB) in cluster 2 were involved in chitin metabolic process, growth factor activity (Figure 2E, 2F Cluster 2).

Between normal two-year-old sexual mature eyestalk and sexual mature precocious eyestalk, 449 DEGs were identified, up-regulated genes like VT1, NPF, Prohormone-3 (PROH3), helicostatins (helicostatins), pro-neuropeptide Y (NPY) in completely sexual mature precocious eyestalk were associated with neuropeptide hormone activity, neuropeptide signaling pathway (Table S2, Figure 3).

3.3DEGs related to neuropeptide hormone activity and lipid transport¶

Gene expression values from a total of 15 DEGs (GO:0005184, neuropeptide hormone activity) and 12 DEGs (GO:0006869, lipid transport) from the studied individuals were extracted. 12 out of 15 DEGs related to neuropeptide hormone activity were identified in eyestalk tissue and most of the DEGs (MIH, GPHB5, NPA, CHH, VT1, NPF, RPCH, PDH1, CCAP, NPY) were upregulated in precocious eyestalk than in normal sex mature eyestalk. 11 out of 12 DEGs related to lipid transport were identified in hepatopancreas tissue, and most of the DEGs (SLC10A1, Apolipophorin, VG, LDLR-A, SLC10A2) were upregulated in precocious hepatopancreas than in normal sex mature hepatopancreas (Table S3).

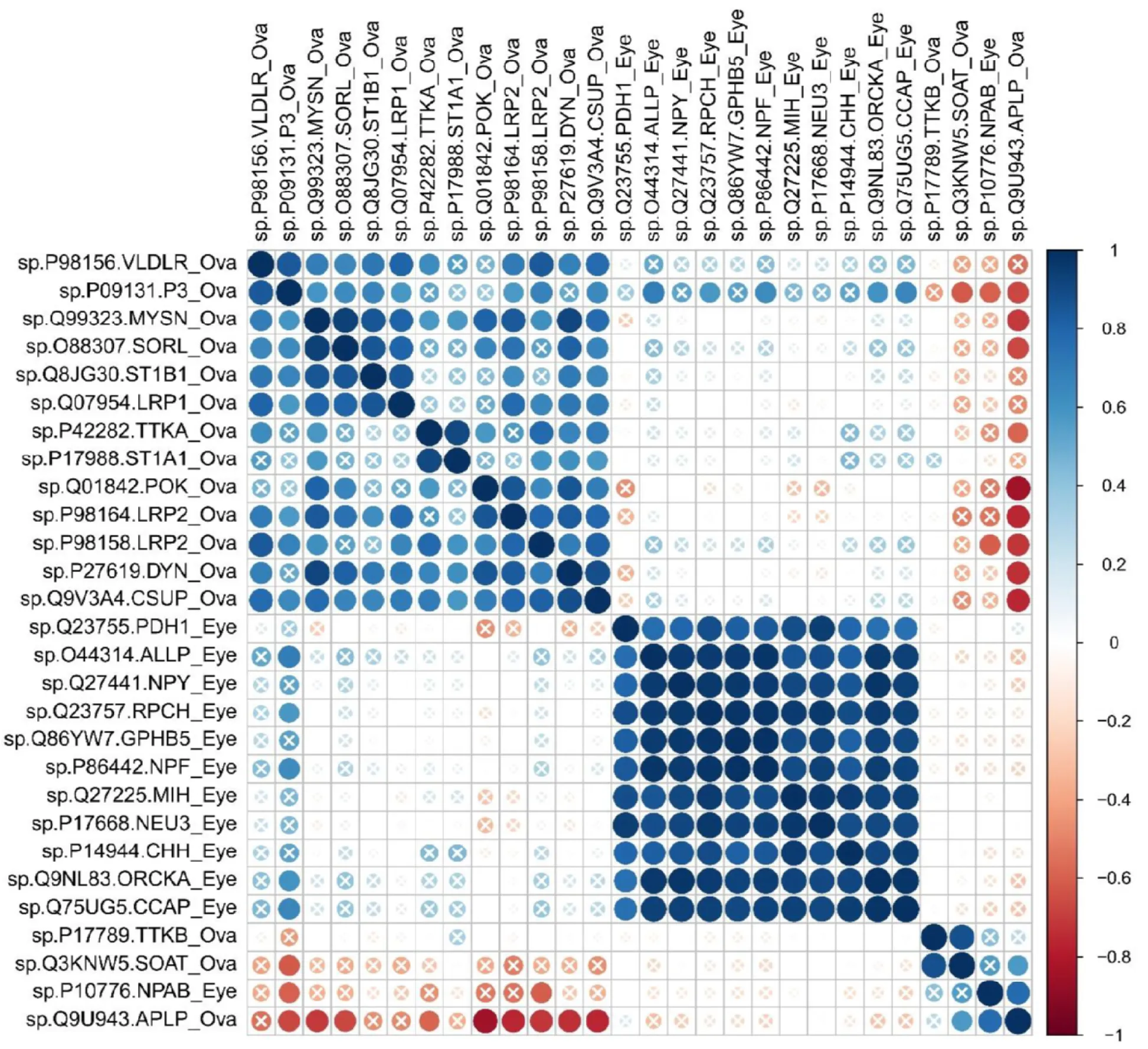

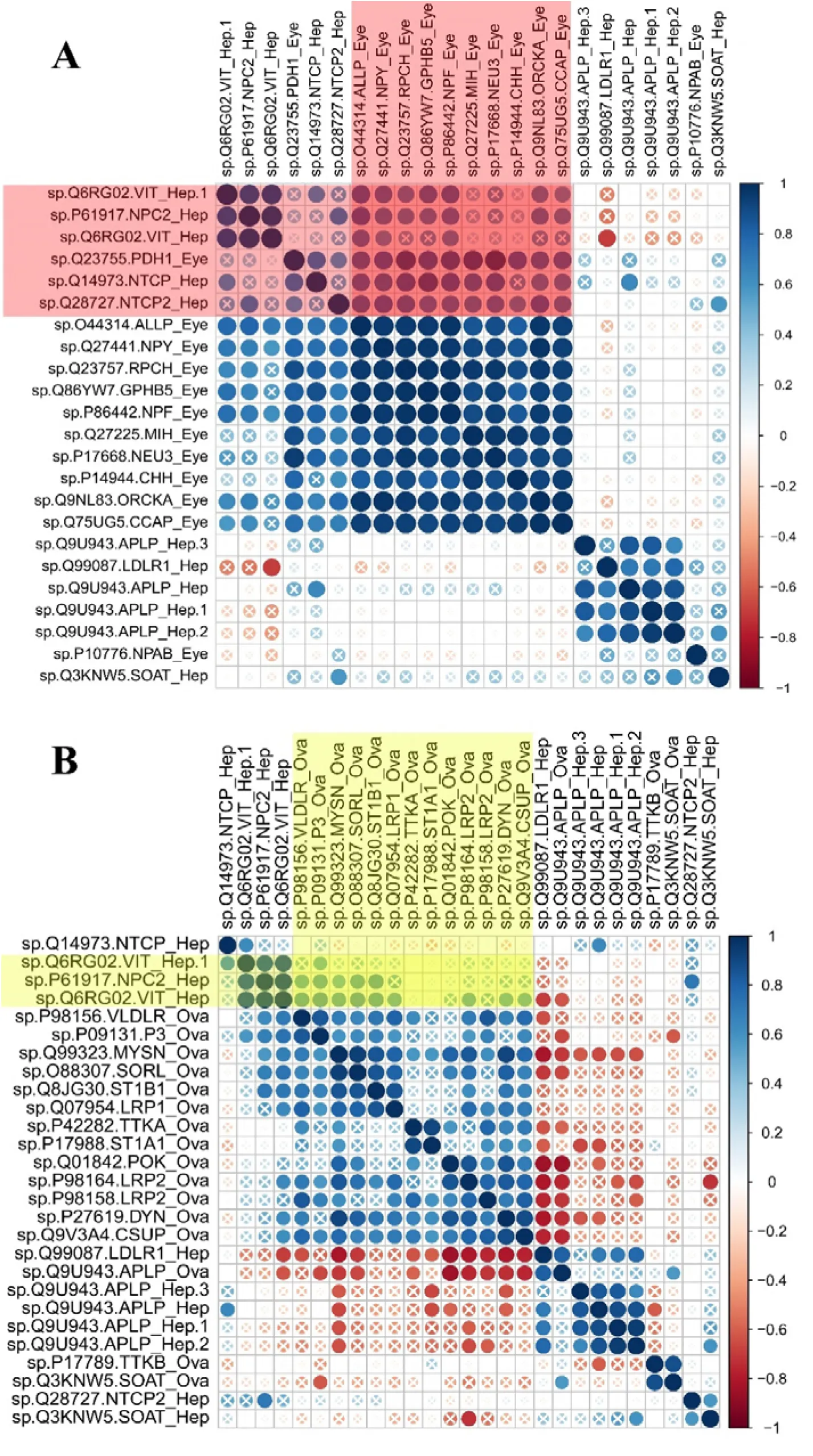

The correlation coefficient adjacency matrix indicated that DEGs in eyestalk annotated as neuropeptide hormone activity such as NPY, RPCH (SP|Q23757), GHBP5, NPF, ORCKA (SP|Q9NL83_ORCKA), CCAP, Helicostatins (SP|Q44314_ALLP) were positively correlated with DEGs in hepatopancreas annotated as lipid transport such as VG (SP|Q6RG02), NPC2 (SP|P61917), SLC10A1 (SP|Q14973), SLC10A2 (SP|Q28727) (P<0.05) (Figure 4A, red shade area). Meanwhile, DEGs in hepatopancreas annotated as lipid transport such as VG (SP|Q6RG02), NPC2 were positively correlated with DEGs in ovary annotated as oogenesis, border follicle cell migration, steroid metabolic process, lipid transport (Figure 4B, yellow shade area) (P<0.05). However, most DEGs in eyestalk annotated as neuropeptide hormone activity were not correlated with DEGs in ovary, only SLC10A3 (SP|P09131) showed positively correlation with Helicostatins, RPCH, GHBP5, and CCAP genes (Figure S1).

4Discussion¶

Sexual precocity is a complex biological process with many genes/pathways involved in specific organs to induce gonad early development Parent et al., 2003Abreu et al., 2015. In this study, we utilized the ratio of abdomen sternite length to discriminate ovary developmental stages and believed it is a convenient method for the detection of potential precocious E. sinensis in advance. E. sinensis with the ratio of abdomen sternite length above 0.70 during the first year are potential precocious E. sinensis that should be abandoned in the aquaculture. Compared with the expression profiles of ovary between two-year old and one-year old sex mature E. sinensis, only 11 DEGs were identified and the tissue histology observation showed normal function of precocious ovary which indicated that precocious E. sinensis are functional and able for spawning Chang et al., 2017. Neuroparsin-A (NPA) is believed to be involved in the regulation of insect reproduction through inhibit the effects of juvenile hormone was highly expressed in precocious E. sinensis indicating that early ovary development may due to the abnormal expression of NPA caused by environment factors Badisco et al., 2007. However, comprehensive functional studies need to be conducted to reveal the molecular mechanism. Our results also provided novel insights into the genetic interaction of eyestalk and hepatopancreas on ovary early development of precocious E. sinensis.

Significant different gene expression profiles were identified in hepatopancreas and eyestalk between normal and precocious E. sinensis, which indicating the important function of hepatopancreas and eyestalk in regulating ovary development. Hepatopancreas is an essential organ for energy storage and metabolism of crustaceans, providing required energy for the growth and development Wang et al., 2008Huang et al., 2015. It is also a site for the synthesis and metabolism of certain steroid hormones required by crustaceans, which plays essential roles in vitellogenesis process Uawisetwathana et al., 2011Wang et al., 2014. In this study, DEGs associated with lipid metabolic process were upregulated in major growth stage I, stage II during vitellogenesis process in precocious E. sinensis (Figure 2B, cluster1), indicating the initiation of ovary development depend on the lipid metabolic in hepatopancreas, which may provide energy and steroid hormones for early ovary development (DUet al. 1999; WANGet al. 2001).

Previous studies also pointed out that nutriment like sugar/lipid will be absorbed and accumulated in hepatopancreas, and excessive nutrition will be transferred to gonad continuously which will induce gonad early development Teng et al., 2008. Interestingly, DEGs associated with lipid transport were also upregulated in precocious E. sinensis compared with normal E. sinensis in both hepatopancreas and ovary tissues (Figure 2B, Cluster 2, Figure 3). These up-regulated lipid transport related genes may provide the genetic basis for the lipid transfer from hepatopancreas to ovary Li et al., 2001Wang et al., 2001Teng et al., 2008. The hepatopancreas index measured in this study decreased with the increased gonad index also supported that hepatopancreas may transfer required energy/lipid to ovary (Figure 1). Meanwhile, vitellogenin (VG) is the key factor component in vitellogenesis in E. sinensis, which include endogenous VG and exogenous VG. Endogenous VG is believed to be synthesized by oocyte, while exogenous VG is believed to be synthesized in hepatopancreas and transferred to ovary Wahli, 1988. In this study, VG genes were significantly up-regulated in hepatopancreas of precocious E. sinensis, indicating hepatopancreas is the main vitellogenin synthesis site in E. sinensis and all the VG protein required for vitellogenesis originated from hepatopancreas. Meanwhile, VG genes expression in hepatopancreas was positively correlated with oogenesis, lipid transport DEGs in ovary indicating excessive VG expression in hepatopancreas may stimulate the ovary development in precocious E. sinensis. VMO1 which is associated with vitelline membrane formation was also up-regulated in precocious E. sinensis, indicating hepatopancreas may also participate in the vitelline membrane formation process.

Our results confirmed the essential roles of hepatopancreas in regulating ovary development, energy and steroid hormone required for oogenesis; vitellogenin synthesis and vitelline membrane formation for vitellogenesis were fulfilled in hepatopancreas. The intrinsic genetic factors of sexual precocity in E. sinensis at some content due to the abnormal expression of the above-mentioned candidate DEGs in hepatopancreas.

It is believed that X-organ-sinus gland complex system existed in eyestalk is an important neuroendocrine system in crustaceans Nagaraju, 2011. Previous study indicated by regulating the endocrine system of shrimp and crab, the growth rate and the mature time will be improved, and eyestalk ablation (ESA) is a way to stimulate gonad development and ovulation Wang et al., n.d.. Consistent with previous hypothesis, more neuropeptide hormone like NPF, NPY, Prohormone-3 were identified as up-regulated in precocious eyestalk in this study indicating the essential regulatory mechanism of eyestalk in ovary development. NPF and NPY belong to NPY family are neuropeptide hormone that accelerates ovarian maturation in female Schistocerca gregaria Schoofs et al., 2001, and plays a role in the regulation of visceromotor functions during egg laying Rajpara et al., 1992. CHH, MIH have long been considered to inhibit crustacean molting, and after E. sinensis finish their last reproductive molting like insects, they will stop molting and initiate their gonad development Chan et al., 2003Huiyang et al., 2015. Therefore, extremely highly expressed CHH, MIH in eyestalk may inhibit the molting and induce precocity. More interestingly, DEGs in eyestalk such as NPY, RPCH, Helicostatins, GHBP5, NPF, ORCKA, CCAP were positively correlated with VG genes expression in hepatopancreas which indicate these neuropeptide hormone genes may target hepatopancreas and induce VG expression, however, further functional experiments need to be conducted to confirm the hypothesis (Figure 4B). All the upregulated genes in precocious eyestalk indicated the neuropeptide hormone synthesized in eyestalk may stimulate ovary development like HPG axis. Our results pointed out that eyestalk is indeed essential organ for gonad development and may play essential roles in regulating vitellogenesis in precocious E. sinensis. However, the interplay of eyestalk, hepatopancreas, and ovary requires more further functional researches.

Sexual precocity is a serious situation in the aquaculture of E. sinensis, scientific researchers and farmers were struggled with the solutions and genetic mechanism of sexual precocity. In this study, there were few expression differences identified between precocious and normal sexual mature ovary, and the early development of ovary may be affected by abnormal developed eyestalk and hepatopancreas. Several stimulation factors such as high temperature, salt, stock density, nutrition may induce the metabolic disorder of genes associated with neuropeptide hormone, steroid hormone as identified in this study, leading to the abundant expression and accumulation of VG in hepatopancreas and further initiating the ovary development. However, comprehensive functional studies should be conducted to further reveal the genetic mechanism of sexual precocity, especially the regulatory mechanism for eyestalk and hepatopancreas. Our study provides valuable genetic resources for the research of sexual precocity in E. sinensis in future. Meanwhile, the effective convenient phenotype measurement method and related candidate DEGs identified in this study will provide guidance for the detection of precocious E. sinensis in aquaculture.

5Conflict of interest¶

The authors declare no competing interests.
